In stockOMAC

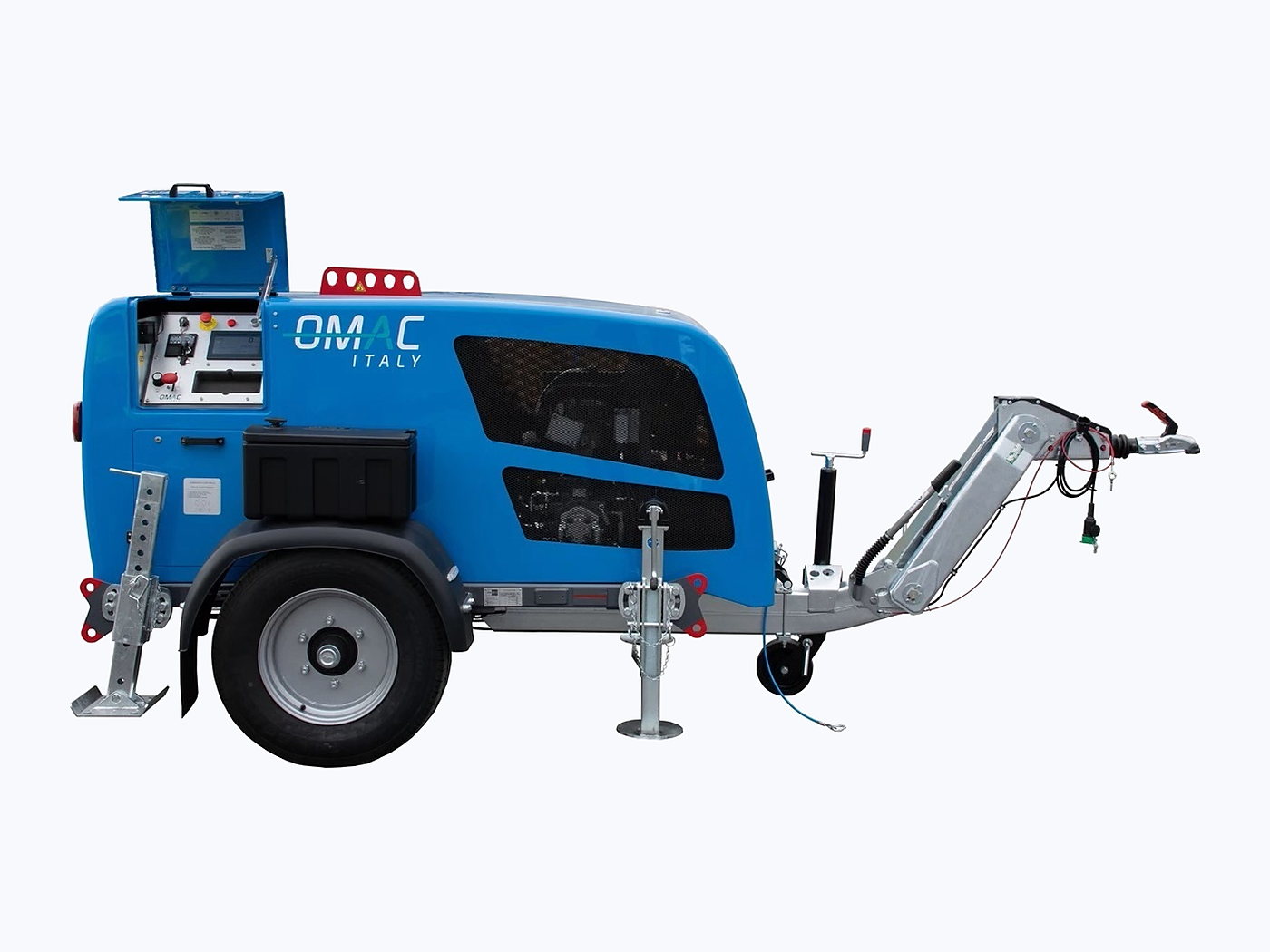

OMAC · 40 kN hydraulic cable winch
OMAC UP40
A step up from the UP30 — more force in reserve and a larger drum, for routes several hundred metres long with a few changes of direction.
OMAC
Pulling force
40 kN — with a margin for friction along the route.
Rope
up to approx. 1200 m · rope ø 11–13 mm
Drive
hydraulic / diesel power pack
Application
Larger cross-sections, longer routes, work on high-voltage networks.
Technical data
- Manufacturer
- OMAC
- Model
- OMAC UP40
- Maximum pulling force
- 40 kN
- Rope length / capacity
- up to approx. 1200 m · rope ø 11–13 mm
- Drive type
- hydraulic / diesel power pack
- Working speed
- 0 – 5 km/h, infinitely variable
- Weight
- approx. 1400 kg
- Transport method
- single-axle trailer
- Pulling force recording
- yes – pulling force recording (option)
- Standard equipment
- rope drum, guide roller, remote control, length counter
- Availability
- To order – ask about lead time
- Price
- Ask for a price (price depends on configuration and equipment)
Parameters are indicative — the final configuration and catalogue data are confirmed in the quote.
Buying a new winch? Ask about leaving your old machine in part exchange — we will value it and deduct it from the price of the new unit.
Value my winch
