In stockOMAC

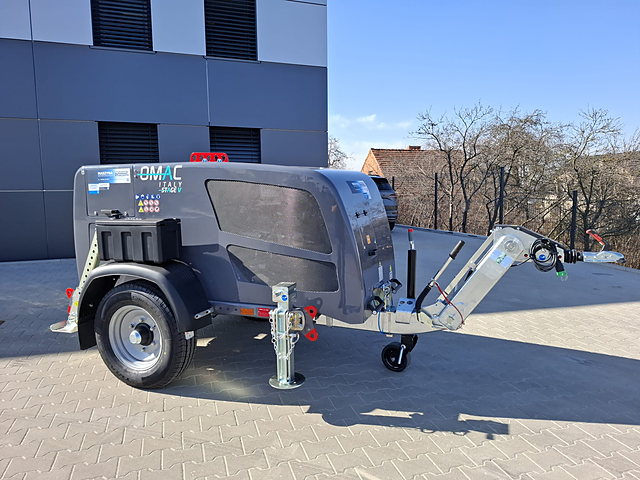

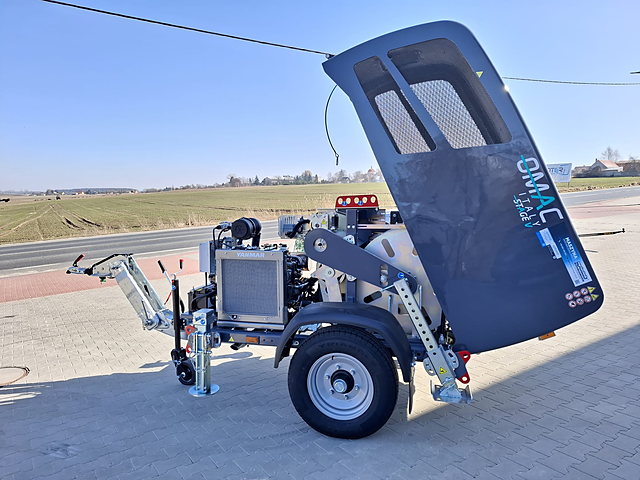

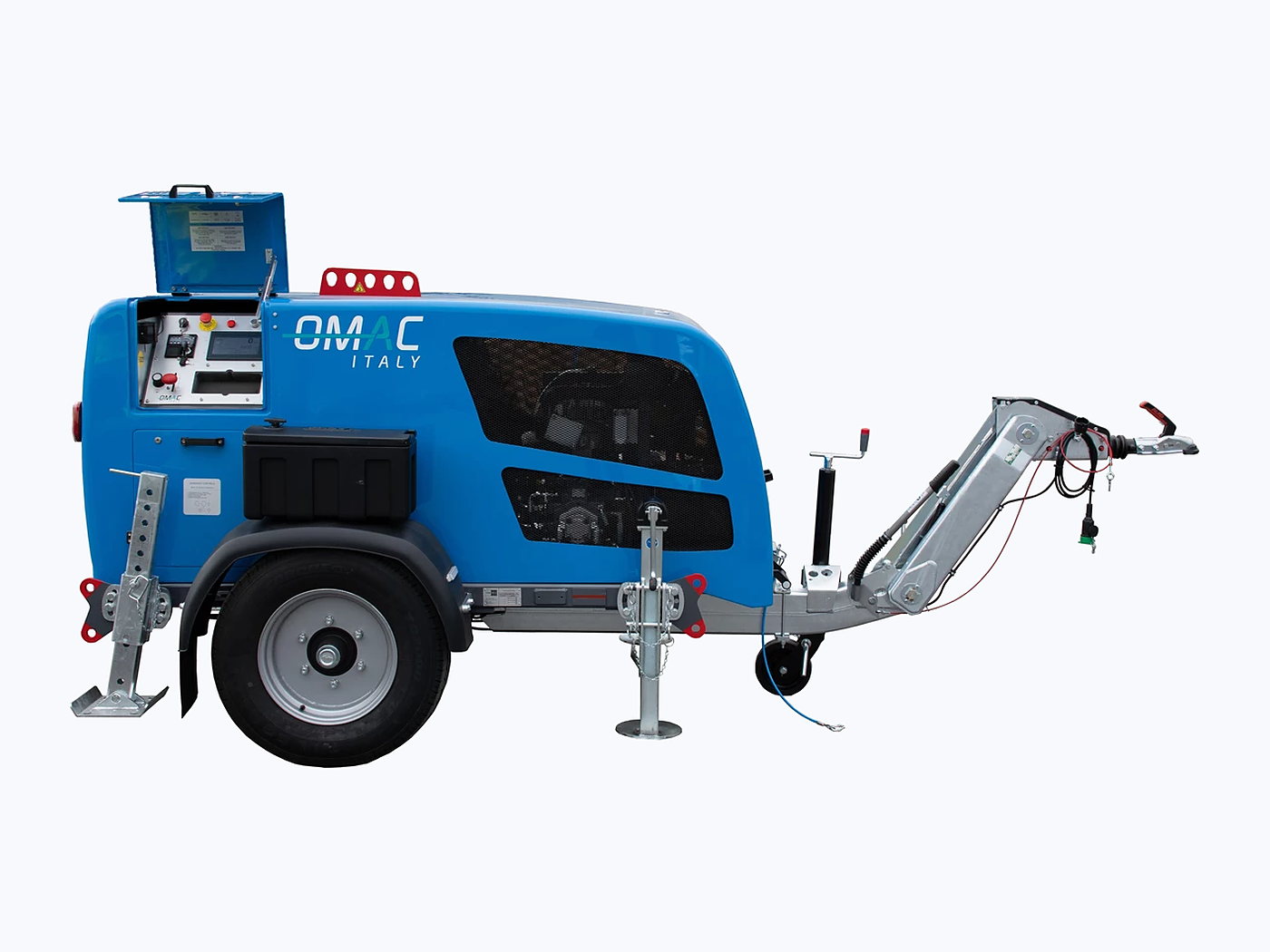

OMAC · 50 kN hydraulic cable winch
OMAC UP50
A machine for jobs where smaller units work at their limit. Full recording of pull parameters for handover documentation.
OMAC
Pulling force
50 kN — with a margin for friction along the route.
Rope
up to approx. 1500 m · rope ø 13 mm
Drive
hydraulic / diesel power pack
Application
The heaviest pulls: large HV cable cross-sections, line construction, large-scale infrastructure work.
Technical data
- Manufacturer
- OMAC
- Model
- OMAC UP50
- Maximum pulling force
- 50 kN
- Rope length / capacity
- up to approx. 1500 m · rope ø 13 mm
- Drive type
- hydraulic / diesel power pack
- Working speed
- 0 – 5 km/h, infinitely variable
- Weight
- approx. 1800 kg
- Transport method
- twin-axle trailer
- Pulling force recording
- yes – pulling force recording (option)
- Standard equipment

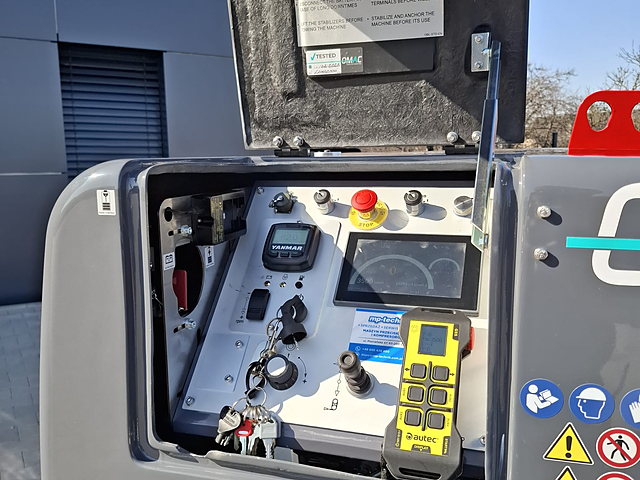

- rope drum, guide roller, remote control, recorder
- Availability
- To order – ask about lead time
- Price
- Ask for a price (price depends on configuration and equipment)
Parameters are indicative — the final configuration and catalogue data are confirmed in the quote.
Buying a new winch? Ask about leaving your old machine in part exchange — we will value it and deduct it from the price of the new unit.
Value my winch
